MDT Driver | Hantas

Product Code :

Brand: HANTAS

Availability: Đặt trước

Contact

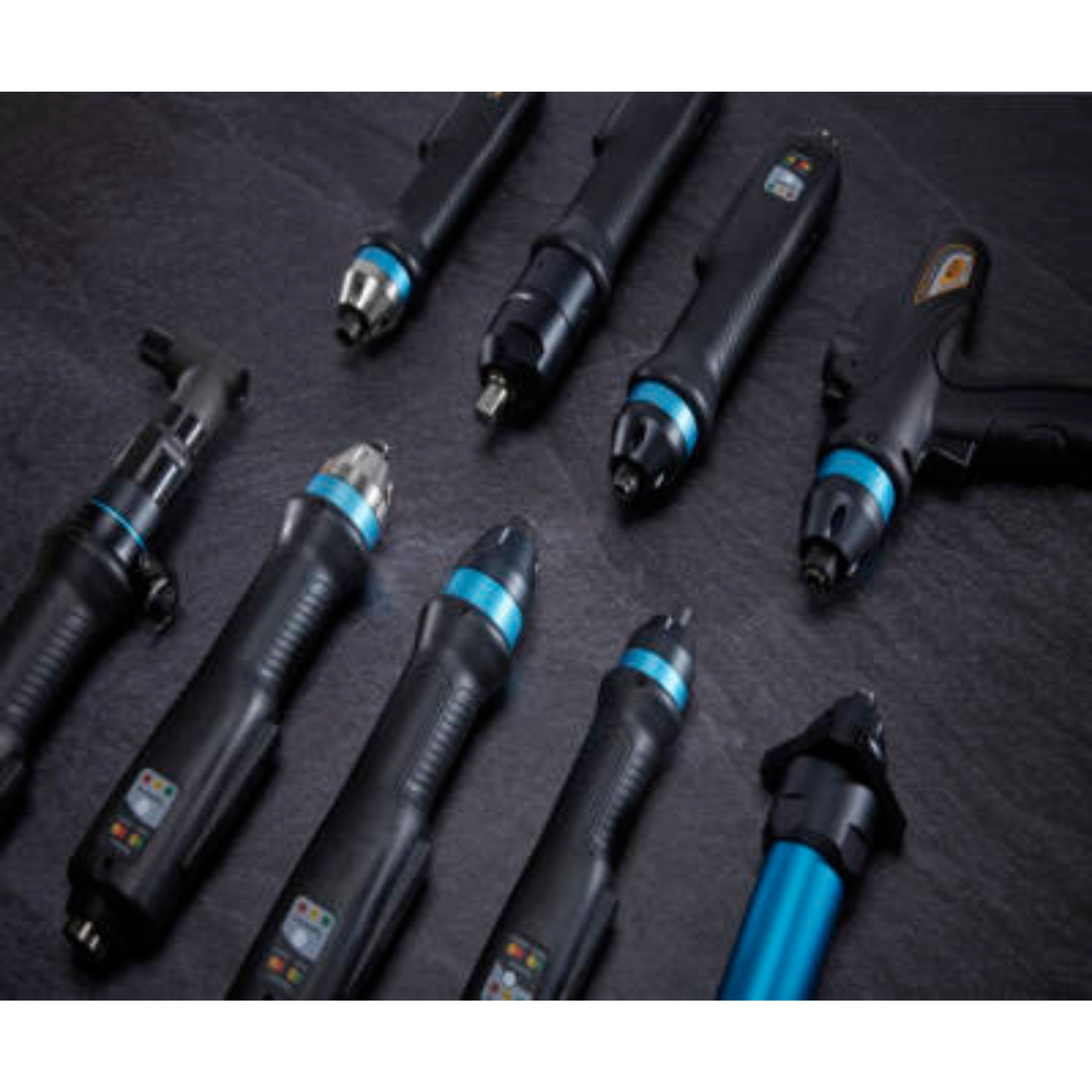

MDT Driver is a reliable robotic spindle system engineered for accurate and repeatable torque control.
MDT Driver can more accurate torque measure to use sensor values, regardless of speed or tightness.

MDT Driver is optimized for Manual line, MDT Driver can see the effects of improving productivity and reducing labor fatigue level.

MDT Accessories provide automated functions to prevent workers from making mistakes.

PC or PLC can control torque, speed control and tightening results monitoring by communication.

INQUIRE NOW

Description
Reviews (0)

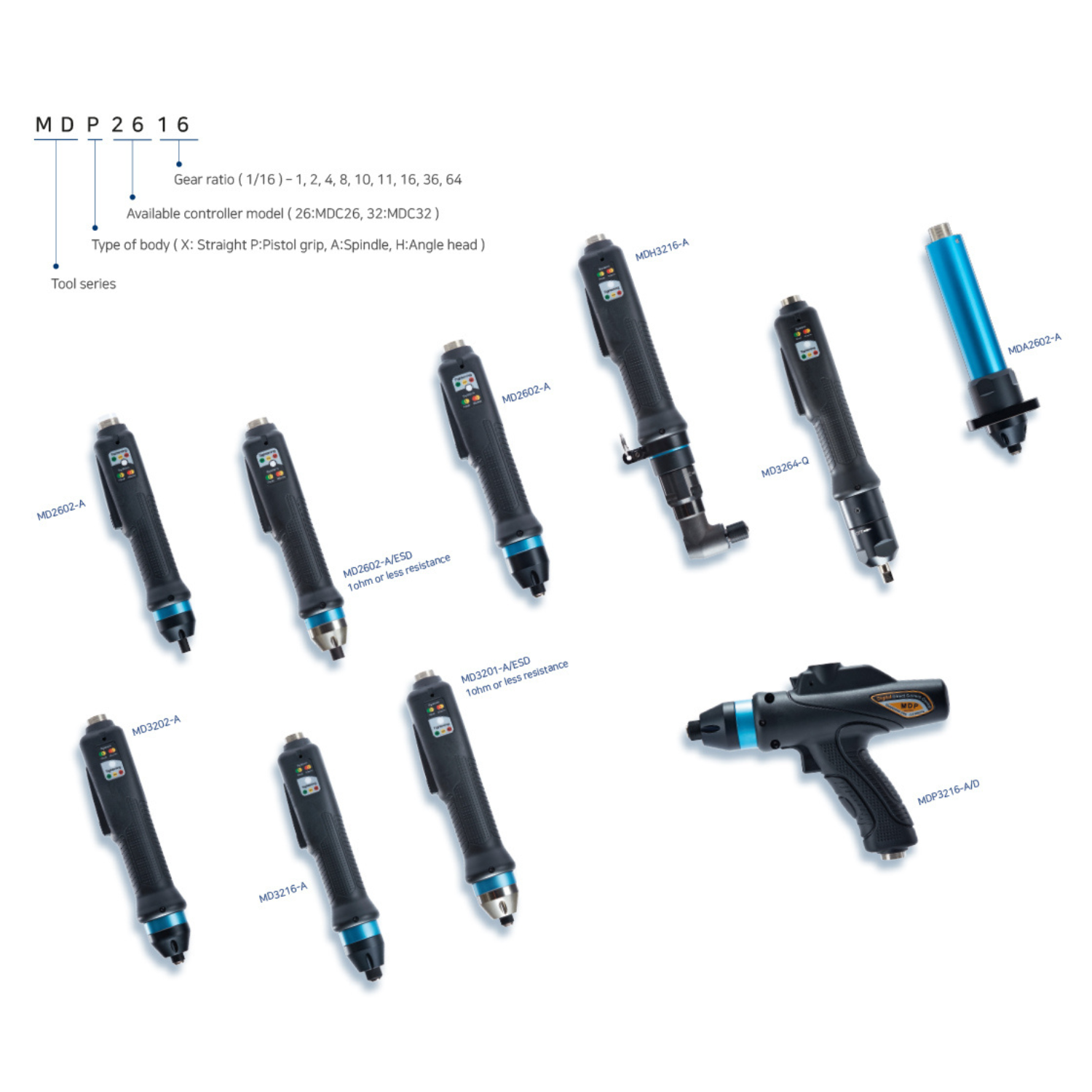

Driver list

Loại thẳng
Loại súng
Loại trục chính
Loại đầu góc

Model	Lực (N.m)	RPM	Kích thước tua vít	Bộ điều khiển
MDT2604	0.2 ~ 1.4	100 ~ 1500	Hex 1/4”	MDTC-38
MDT2611	0.4 ~ 3.4	100 ~ 900	Hex 1/4”
MDT2616	0.5 ~ 5	100 ~ 620	Hex 1/4”
MDT2628	1.8 ~ 8	50 ~ 300	Hex 1/4”
MDT3204	0.4 ~ 4	100 ~ 1800	Hex 1/4” hoặc SQ 3/8"
MDT3208	0.7 ~ 7.5	50 ~ 950	Hex 1/4” hoặc SQ 3/8"
MDT3211	1 ~ 9	50 ~ 690	Hex 1/4” hoặc SQ 3/8"
MDT3216	2 ~ 14	50 ~ 470	Hex 1/4” hoặc SQ 3/8"
MDT3228	5 ~ 27	50 ~ 260	SQ 3/8"
MDT3243	7 ~ 35	50 ~ 180	SQ 3/8"
MDT3258	8 ~ 50	50 ~ 135	SQ 3/8"
MDT3206(L)	0.6 ~ 6.5	100 ~ 1250	Hex 1/4” hoặc SQ 3/8"
MDT3211(L)	1.5 ~ 11.5	50 ~ 690	Hex 1/4” hoặc SQ 3/8"
MDT3216(L)	2 ~ 16	50 ~ 470	Hex 1/4” hoặc SQ 3/8"
MDT3220(L)	3 ~ 20	50 ~ 375	Hex 1/4” hoặc SQ 3/8"
MDT3224(L)	4 ~ 24	50 ~ 310	Hex 1/4” hoặc SQ 3/8"
MDT3236(L)	5 ~ 33	50 ~ 200	SQ 3/8"
MDT3245(L)	6 ~ 40	50 ~ 160	SQ 3/8"
MDT3264(L)	8 ~ 57	50 ~ 115	SQ 3/8"
